Uniweld’s Cap’n Hook® high performance tip transfers high heat directly onto your work area and away from nearby sensitive areas. Stainless steel construction provides a stable flame time after time while holding its shape. Cap’n Hook® tips provide rapid, even heat distribution for excellent brazing and flow of alloy.

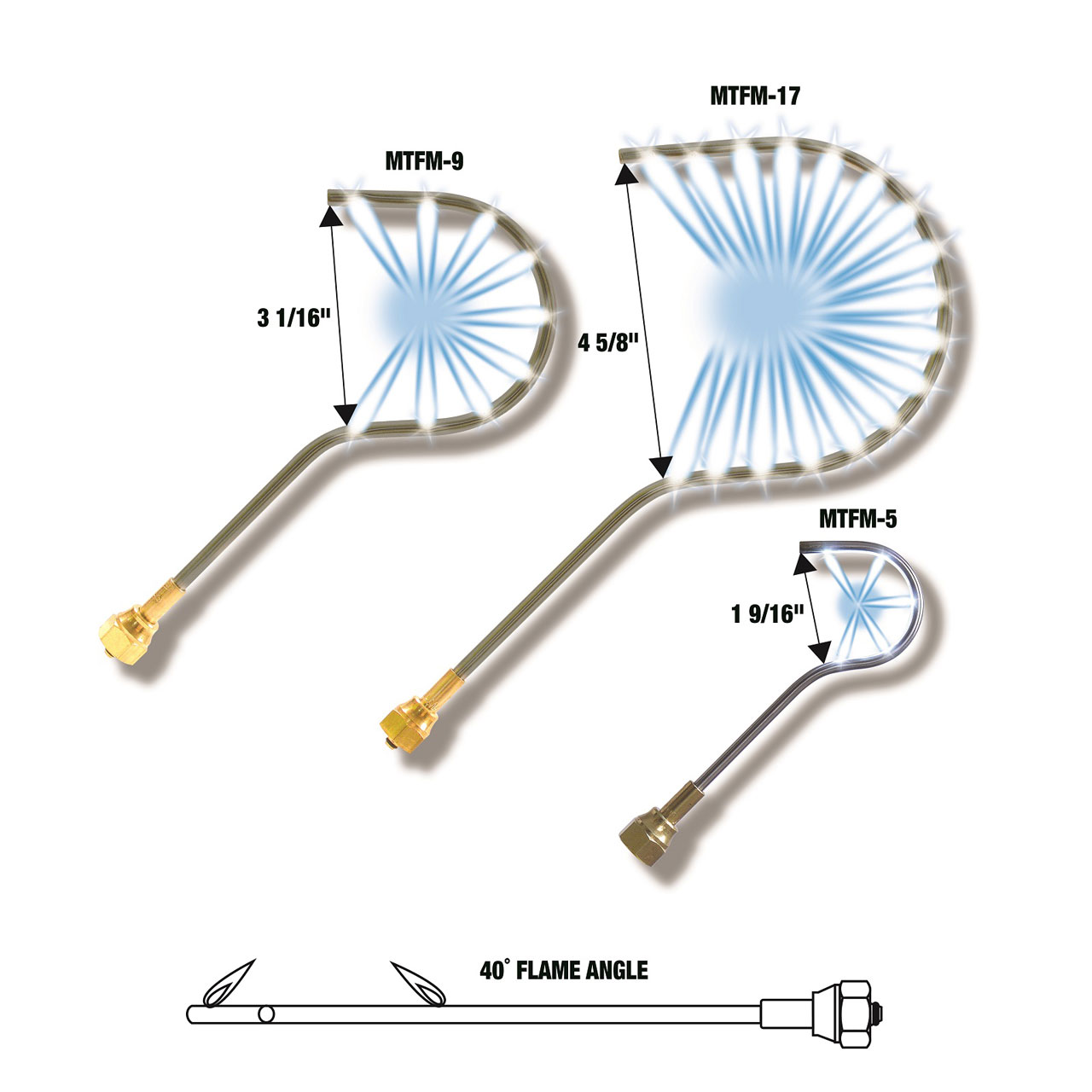

| Complete Assembly Part # | MAP//Pro™, Propane Consumption (SCFH) | Oxygen Pressure (PSIG) | Acetylene/Fuel Pressure (PSIG) | Overall Length | Brazing Copper Tubing |
|---|---|---|---|---|---|

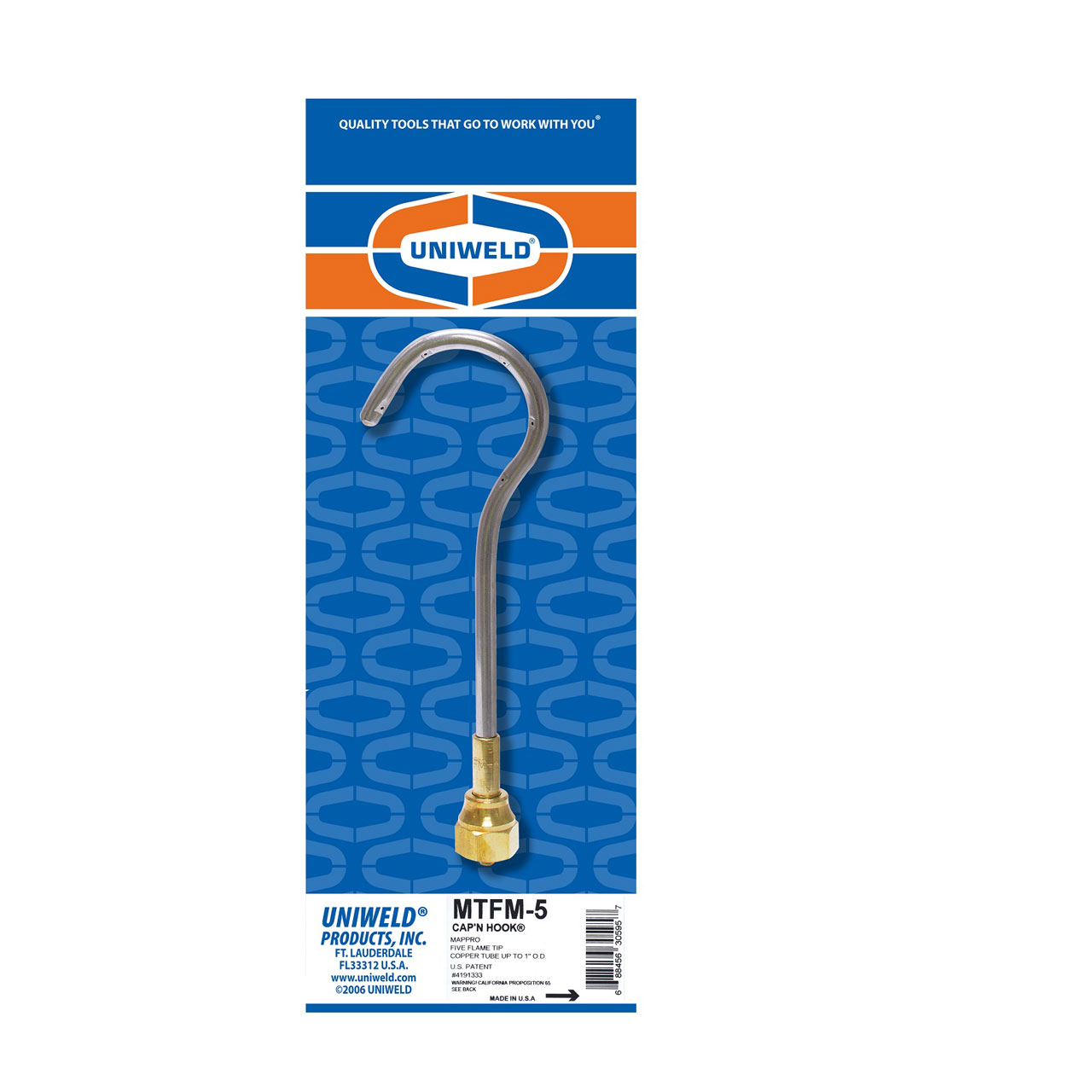

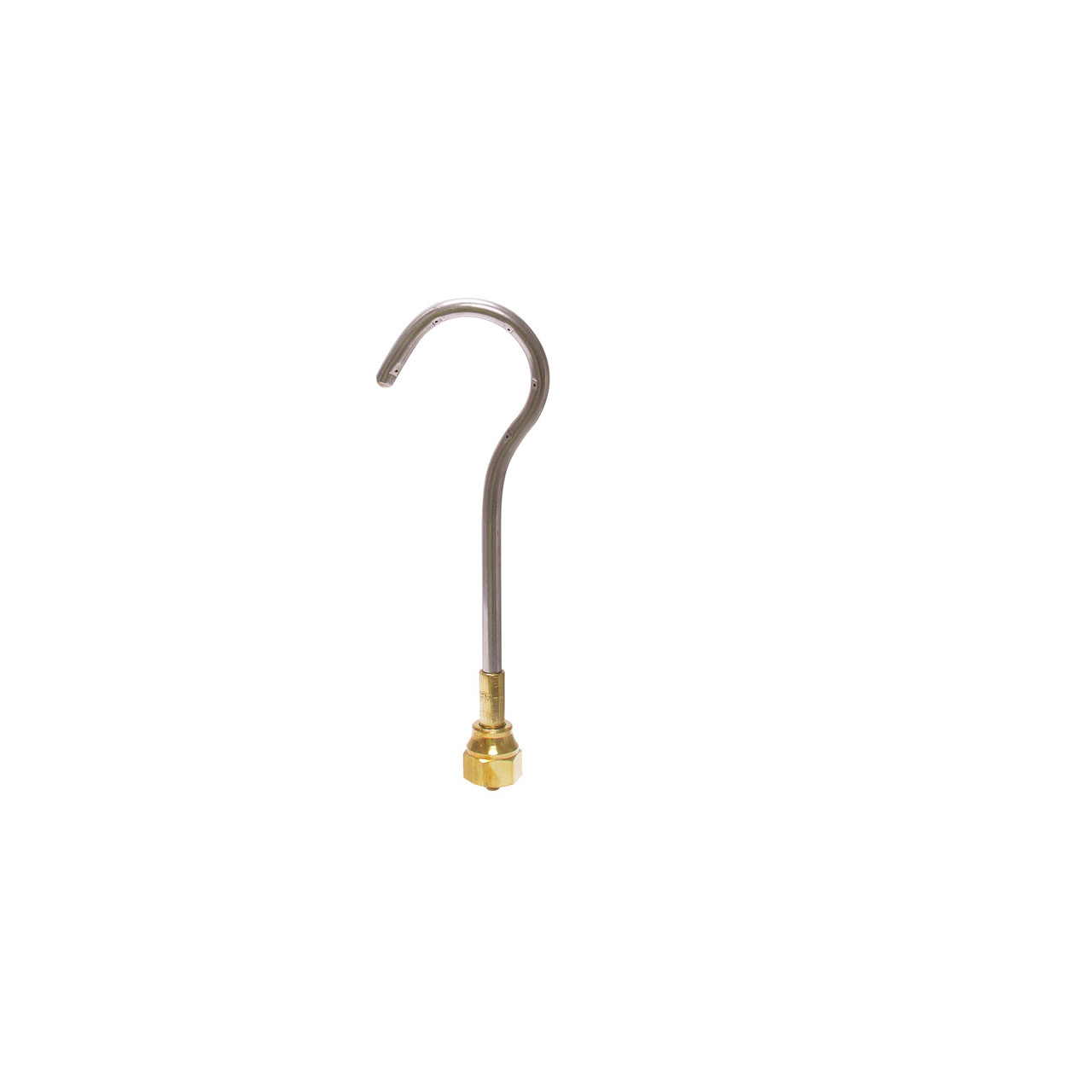

| MTFM-5 | 2.6 | 10 | 5 | 5-1/2” | 1” |

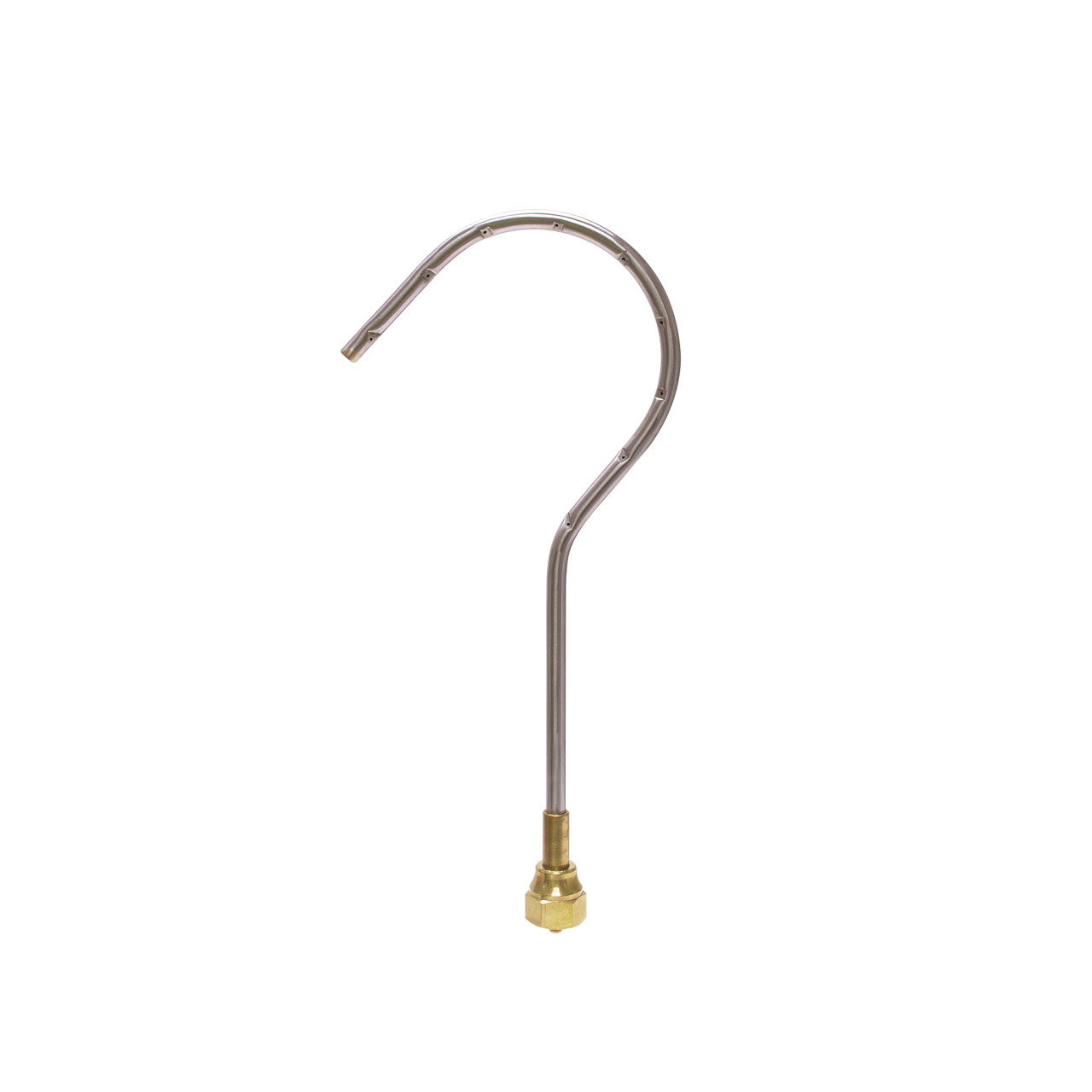

| MTFM-9 | 3.1 | 15 | 7 | 8-1/2” | 2” |

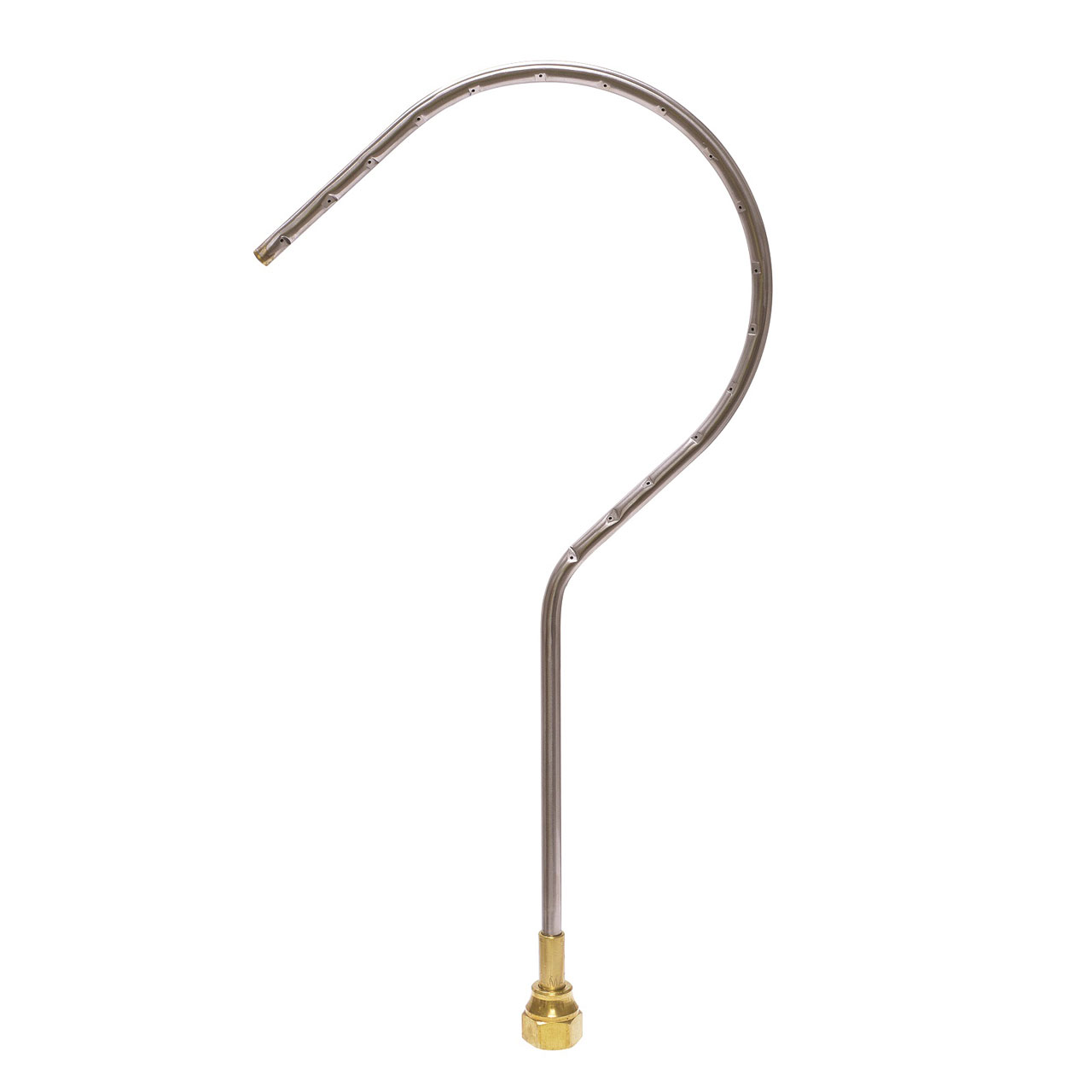

| MTFM-17 | 5.6 | 20 | 10 | 11” | 3” |
| Compatible Welding Handles: | • 71 • WH250 • WH550 • WH350 (requires F15 adaptor) |
|---|
