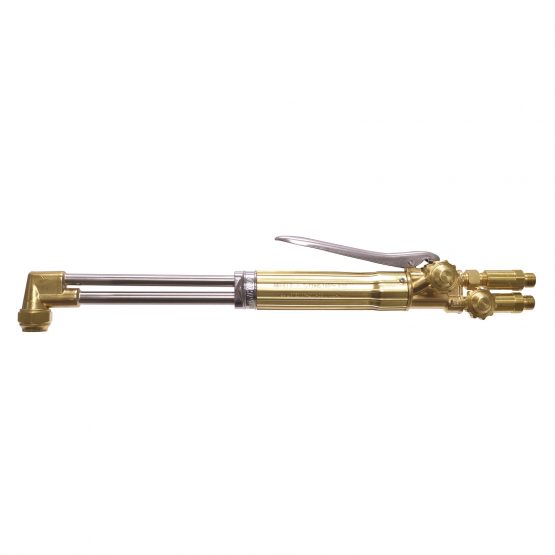

V-Style Hand Cutting Torches

Uniweld’s V-Style Hand Cutting Torches have head angles of 75°, 90° and 180° with heavy duty ribbed brass handle and stainless steel ball point valves with Teflon® Packing.

Category: Tags: , ,

Product Information

Part # Head Angle Torch Length Weight Lever Position Cutting Capacity
830-17 90° 17″ 52 oz Top Rear 12″
831-17 75° 17″ 52 oz Top Rear 12″
830-21 90° 21″ 58 oz Top Rear 12″
831-21 75° 21″ 58 oz Top Rear 12″
832-21 180° 21″ 58 oz Top Rear 12″
830-36 90° 36″ 71 oz Top Rear 12″
831-36 75° 36″ 71 oz Top Rear 12″
832-36 180° 36″ 71 oz Top Rear 12″
830-48 90° 48″ 84 oz Top Rear 12″
831-48 75° 48″ 84 oz Top Rear 12″
832-48 180° 48″ 84 oz Top Rear 12″
850-17 90° 17″ 52 oz Bottom Rear 12″
850-21 90° 21″ 58 oz Bottom Rear 12″
851-21 75° 21″ 58 oz Bottom Rear 12″
852-21 180° 21″ 58 oz Bottom Rear 12″
850-36 90° 36″ 71 oz Bottom Rear 12″
851-36 75° 36″ 71 oz Bottom Rear 12″
852-36 180° 36″ 71 oz Bottom Rear 12″
850-48 90° 48″ 84 oz Bottom Rear 12″
851-48 75° 48″ 84 oz Bottom Rear 12″
852-48 180° 48″ 84 oz Bottom Rear 12″
EC72740A 90° 16″ 38 oz Top Center 7″
EC72740 75° 16″ 38 oz Top Center 7″
EC72780A 90° 16″ 38 oz Top Center 8″
EC72780 75° 16″ 38 oz Top Center 8″

Hand Cutting Torches come with Check Valves installed. Add (FB) to part# to substitute U.L. Listed Flashback Arrestors for Check Valves. Uniweld Check Valves & Flashback Arrestors are both field replaceable.
